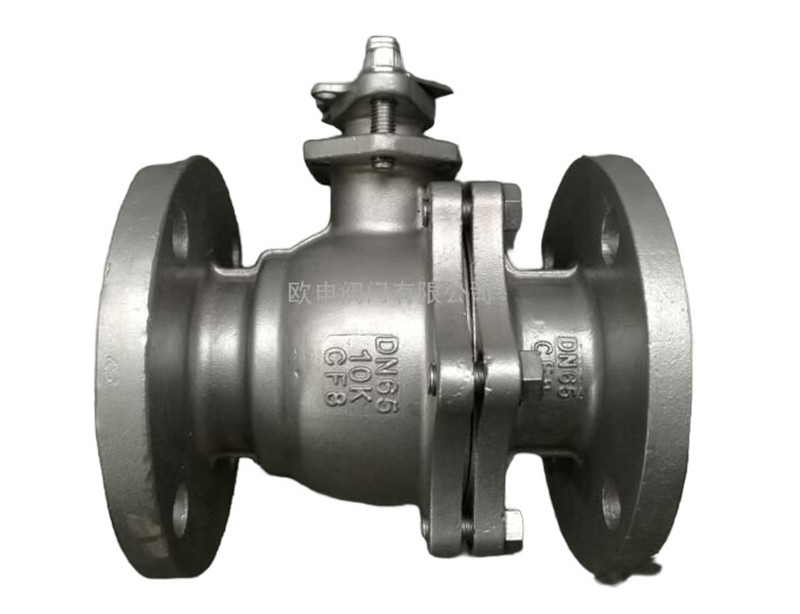

JIS10K Ball Valve,50A,304,FF End
1. Design and manufacture: JIS 2071
2. Face to face: JIS B2002
3. Flange end: JIS B2212, 2214
4. Nominal size: DN15 – DN200
5. Nonimal Pressure: JIS10K,JIS20K;
6. Body materials: WCB, LCB, CF8, CF8M, CF3, CF3M etc.
7. Trim: 13CR, 304SS, 316SS, Duplex stainless steel;
8. Bore type: Full bore
9. Actuator: Lever, Worm gear;
DIN FLOATING BALL VALVE FOR PN16, PN25
End Connections: Flanged RF, RTJ, Butt Weld
Ball Type: Forged solid ball
Seat Materials: PTFE, RPTFE, DEVLON, NYLON, PEEK, metal seated with TCC/STL/Ni.
Valve Description:
Valve Type: Floating Ball Valve
Body Material: 304 .
Nominal Diameter: 2″
Pressure Rating: JIS10K
End Connection: FF Flange
Working Temperature: -29℃~+200℃.
Operation: Lever.
The Japanese standard low platform ball valve can provide an installation platform for the Japanese standard ball valves with actuators such as electric Japanese standard ball valves and pneumatic Japanese standard ball valves.
The Japanese standard low platform ball valve opening and closing parts (balls) are driven by the valve stem and rotate around the axis of the valve stem. It is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control. It has a compact structure, reliable sealing, simple structure, and convenient maintenance. The sealing surface and the spherical surface are often in a closed state, not easily eroded by the medium, easy to operate and maintain, suitable for general working media such as water, solvents, acids and natural gas, and also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane, etc., and is widely used in various industries. The ball valve body can be integral or combined.
Implementation standards of Japanese standard low platform ball valve
Design and manufacturing according to ANSI B16.34, JIS 2071
Structural length according to JIS B2002
Flange connection dimensions according to JIS B2212, 2214
Inspection according to JIS B2003
Main materials of Japanese standard low platform ball valve
| Parts name | WCB | CF8 | CF3 | CF8M | CF3M | |
| Body/Bonnet | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M | |
| BALL | B8 | A105-1025 | A182-F304L | A182-F304L | A132-F316 | A182-F316L |
| B8 | A216-WCB | A351-CF8M | A351-CF3 | A351-CF8M | A351-CF3M | |
| STEM | A182-F6a | A182-F304 | A182-F304L | A182-F336 | A182-F316L | |
| SEAT | PTFE/RPTFE/NYLIN PTFE/Reinforced PTFE/Nyion | |||||
| Valve seat support ring | A105-1025 | A182-F304 | A182-F304L | A182-F316 | A182-F316L | |
| SPRING | 3yc-7/17-49H | |||||
| O-RING | NBR | VITON | ||||
| BOLT | A193-B7 | A193-B8 | ||||
| NUT | A194-2H | A194-8 | ||||
| 10KMain connection dimensions and weight 20K 5K 30K 45K |
| Size | inch | 1/2″ | 3/4″ | 1″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ |
| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | |
| L | mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 |
| H | mm | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
| W | mm | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
| Weight | kg | 2.3 | 3.0 | 4.5 | 7.0 | 9.5 | 15.0 | 19.0 | 33.0 | 58.0 | 93.0 | 160.0 | 200.0 |
