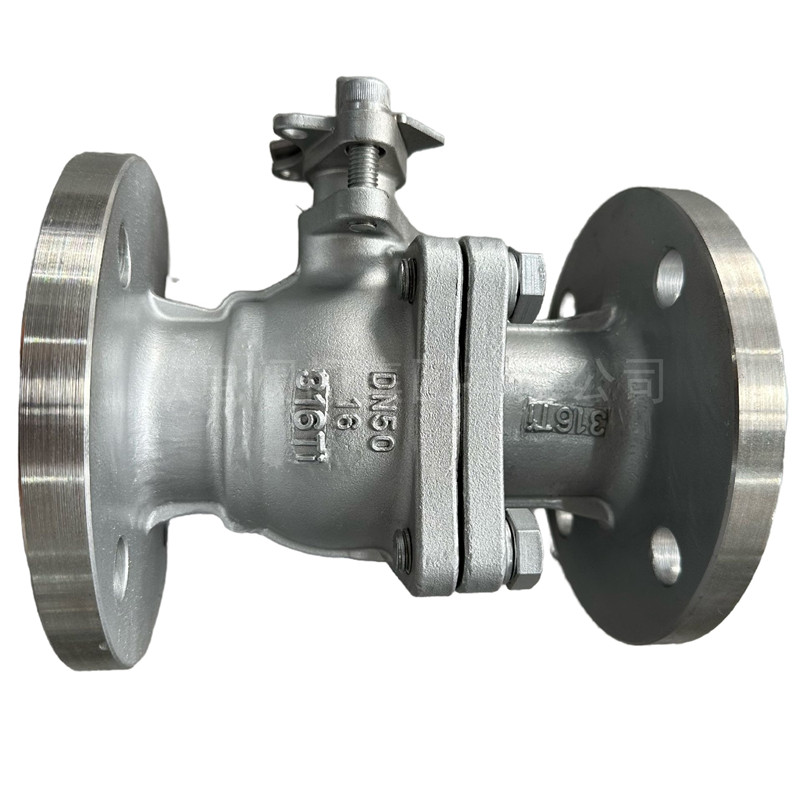

316TI Ball Valve,PN16,DN50,RF End
1. Design and manufacture: DIN 3357
2. Face to face: DIN 3202
3. Flange end: DIN2501
4. Nominal size: DN15 – DN200
5. Nonimal Pressure: PN16, PN25;
6. Body materials: WCB, LCB, CF8, CF8M, CF3, CF3M etc.
7. Trim: 13CR, 304SS, 316SS, Duplex stainless steel;
8. Bore type: Full bore
9. Actuator: Lever, Worm gear;
DIN FLOATING BALL VALVE FOR PN16, PN25
End Connections: Flanged RF, RTJ, Butt Weld
Ball Type: Forged solid ball
Seat Materials: PTFE, RPTFE, DEVLON, NYLON, PEEK, metal seated with TCC/STL/Ni.
Valve Description:
Valve Type: Floating Ball Valve
Body Material: 316TI .
Nominal Diameter: 2″
Pressure Rating: PN16
End Connection: RF Flange
Working Temperature: -29℃~+200℃.
Operation: Lever.
Stainless steel 316TI ball valves are a specific type of valve that uses a spherical ball with a hole in the middle to control the flow of liquids or gases through a pipe. These ball valves are made from stainless steel grade 316TI, a high-performance alloy that is an enhanced version of the standard 316 stainless steel. The inclusion of titanium (denoted by the “TI”) in the composition provides superior resistance to high-temperature environments, corrosion, and wear. 316TI stainless steel ball valves are used extensively in high-pressure, high-temperature, and corrosive environments due to their durability and resistance properties. The combination of titanium with the existing properties of 316 stainless steel makes these valves ideal for applications in aggressive chemical processes, marine environments, and industries where hygiene is paramount.
