Hastelloy NS3304 (UNS N10276), commonly known as C-276, represents the pinnacle of nickel-based corrosion-resistant alloys. With its exceptional resistance to both oxidizing and reducing environments, this nickel-chromium-molybdenum alloy with tungsten has become indispensable across chemical processing, pollution control, and severe service valve applications. Its unique composition bridges the gap between conventional stainless steels and specialized corrosion-resistant alloys, offering unparalleled protection where other materials fail.

Chemical Composition: Precision Engineering for Corrosion Resistance

NS3304’s extraordinary performance stems from its meticulously balanced chemistry:

The alloy’s ultra-low carbon and silicon content prevent sensitization during welding or thermal cycling, maintaining corrosion integrity in fabricated structures like valve bodies and trim components. Unlike earlier generations of nickel-chromium-molybdenum alloys, NS3304 effectively resists the formation of harmful intermetallic phases that compromise toughness and corrosion resistance1311.

Physical & Mechanical Properties

NS3304 combines corrosion resistance with robust mechanical performance:

• Density: 8.89–8.95 g/cm³

• Melting Range: 1325–1371°C

• Tensile Strength: ≥730 MPa

• Yield Strength: ≥283 MPa

• Elongation: ≥40%

• Hardness: ≤100 HRB3711

This combination enables its use in pressure-containing components like valve bodies, pump casings, and reactor vessels under demanding temperature and pressure conditions.

Unmatched Corrosion Resistance

NS3304’s true distinction lies in its near-universal corrosion resistance:

• Resists wet chlorine, hypochlorites, and chlorine dioxide – outperforms most metals17

• Handles hot concentrated sulfuric acid (even above 70% concentration)713

• Withstands hydrochloric acid across concentrations and temperatures up to 65°C13

• Immune to chloride-induced stress corrosion cracking (SCC) – critical for valve reliability111

• Superb resistance to pitting and crevice corrosion in seawater, brine, and chemical solutions3

This versatility makes it one of the few alloys suitable for processes involving mixed acid environments (e.g., HNO₃/HF mixtures) or switching oxidizing/reducing conditions, common in chemical reactors and scrubber systems613.

Industrial Applications: Where NS3304 Excels

1. Chemical & Petrochemical Processing

• Reactors and heat exchangers handling acetic, formic, and phosphoric acids

• Piping systems exposed to chlorinated organic compounds

• Catalyst recovery systems with corrosive halide contaminants16

2. Pollution Control & Energy

• Flue gas desulfurization (FGD) systems: absorber towers, dampers, reheaters

• Waste incineration scrubbers

• Geothermal brine handling equipment17

3. Pulp & Paper Industry

• Digesters and bleach washers handling chlorine dioxide or chlorinated solvents

• Chemical recovery loop components113

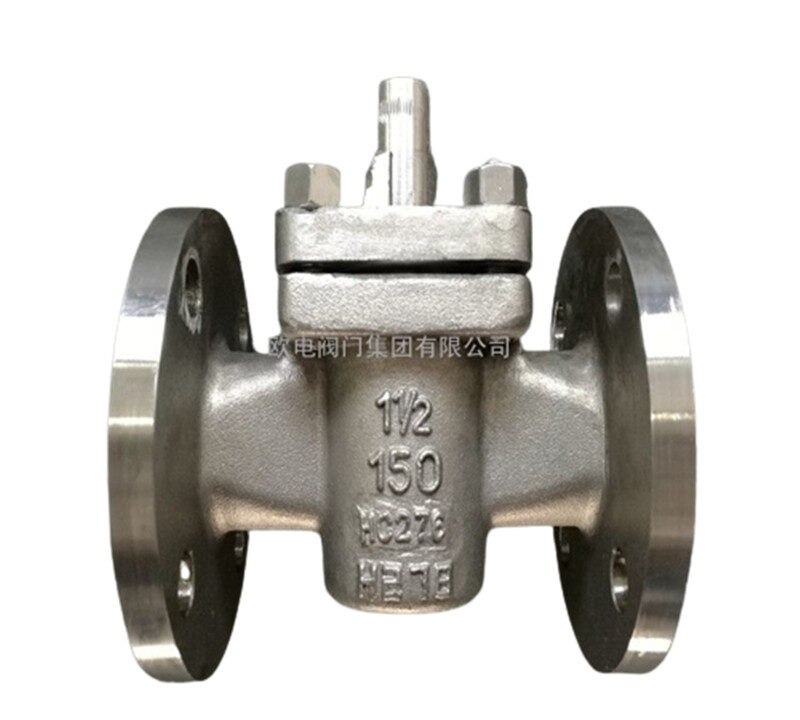

Critical Applications in Valves

Valves manufactured from NS3304 provide extended service life in environments that rapidly degrade standard stainless steels. Specialized valve producers leverage its full capabilities:

Valve Types & Industrial Uses:

Leading valve manufacturers utilize NS3304 for trim components (stems, seats, plugs) and full valve bodies in ultra-corrosive services. The alloy’s weldability allows fabrication of large custom valves via GTAW (TIG) or GMAW (MIG) processes using matching filler metals like ERNiCrMo-411.

Trusted Suppliers & Manufacturers

1. Shanghai Yuanding Metal

Supplies NS3304 bars, plates, and forgings for valve component machining. Offers ASTM B574/B575 certified materials with full traceability. Their stock supports custom valve manufacturers requiring rapid material access36.

2. Zhejiang Lianxin Steel

Specializes in NS3304 pipe fittings (e.g., reducers, elbows) and valve bodies for sulfuric acid systems. Provides custom forging and machining services7.

3. Shenzhen Huani Special Alloy

Offers NS3304 seamless tubes, welded pipes, and precision cold-rolled strips for instrument valves. Provides technical support on welding and fabrication11.

4. Wenzhou Xiangkun Special Metals

Produces NS3304 in compliance with DIN 2.4819 for European valve manufacturers. Expertise includes heat exchanger tubes and valve internals513.

Conclusion: The Material of Choice for Critical Service

Hastelloy NS3304 (C-276) remains the benchmark for corrosion resistance in extreme industrial environments. Its balanced chemistry delivers proven reliability where acids, chlorides, and complex chemical mixtures incapacitate lesser materials. For valve engineers specifying materials for:

• Sulfuric acid concentration systems

• Chlor-alkali processing equipment

• Marine and offshore chemical injection

• Waste treatment scrubbers

NS3304 provides unmatched safety and cost-effectiveness over equipment lifetimes. Continued innovation by specialist suppliers ensures this versatile alloy remains at the forefront of corrosion control technology, enabling safer and more efficient industrial processes worldwide.

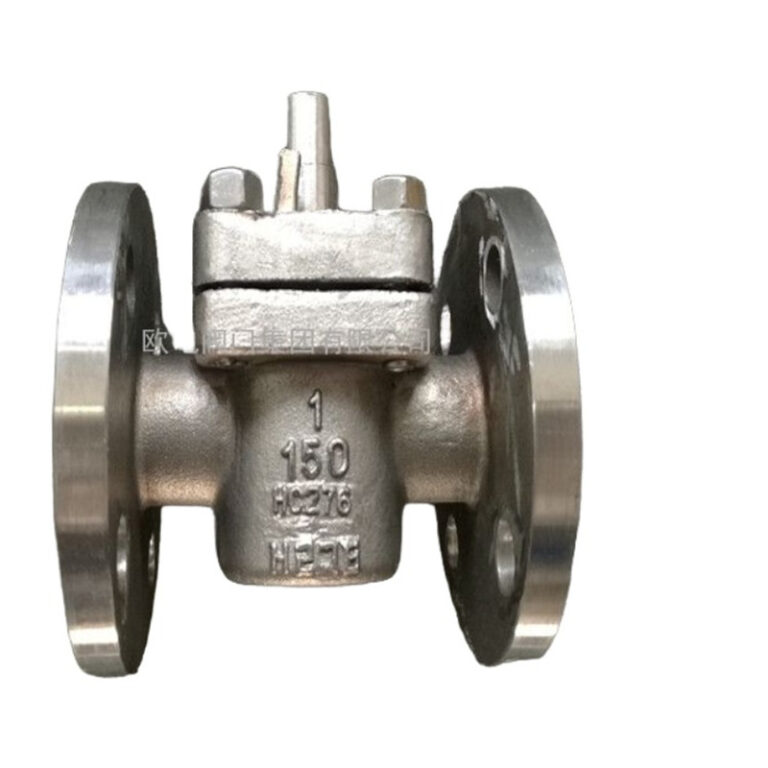

API599 Lubricated Plug Valve Manufacturer:OUDIAN VALVE GROUP CO LIMITED Offer API599 Lubricated Plug Valve,HC276 Body Plug Valve,150LB HC276 Plug Valve,DN25 HC276 Plug Valve,RF End HC276 Plug Valve.
