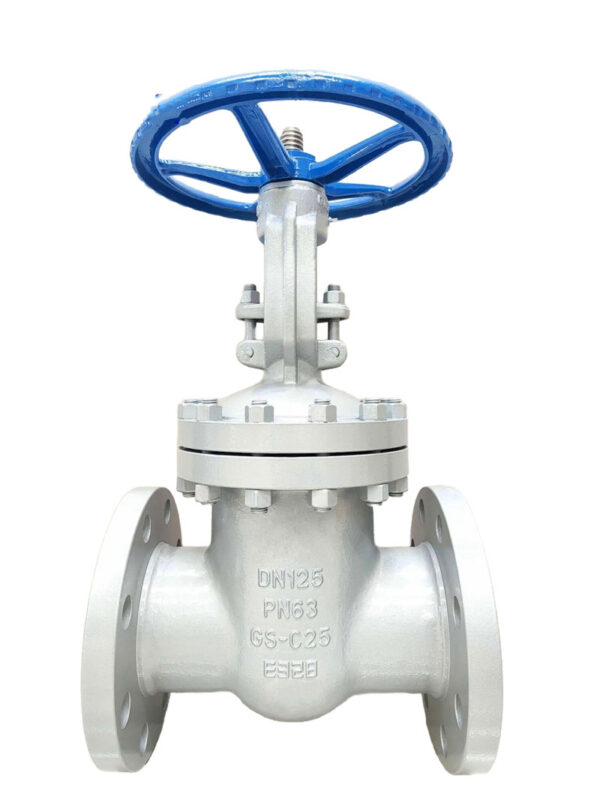

DN125 PN63 Gate Valve, GS-C25, DIN 3352, EN 1984
Oudian Valve Are a reliable DN125 PN63 Gate Valve Supplier, We offer top-quality gate valves made from ASTM A216 WCB, DIN 3352, and EN 1984 standards. Our valves are available in various specifications, including 32 Inch, Class 300 LB, RF, 2 – 60 Inch, DN50 – DN1500, and 150 – 2500 LB, PN10 – PN420. Contact us for all your valve needs.
Valve description:
Product Name: DN125 PN63 Gate Valve
Design: EN 1984, DIN 3352
Material: GS-C25.
Nominal Size: DN125
Nominal Pressure: PN63.
Connection Ends: RF X RF, as per EN 1092-1/B1.
Face to Face: EN 558-1/line 15
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.
Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 – 60 Inch, DN50 – DN1500.
Design pressure: class 150 – 2500 LB, PN10 – PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ – 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
